Three Ways Piggable Valves

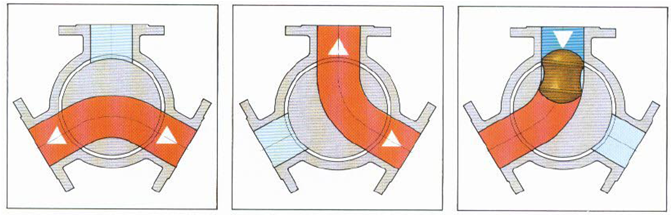

The product can flow through the pocket - free three-way valve in both directions in all three positions. The smooth bore ensures residue-free pigging.

Automation: manual or pneumatic operation with operator mounted onto the right or the left side.

Pressure: up to PN16

Temperature: up to 120C,higher temperatures on request.

Installation position & Flow direction: as required

Size: DN 50, 80,100,150 with inside diameters of 50, 52 , 54, 78, 80, 82.5, 101 , 107, 150 and 159mm.

Material: body steel or stainless steel. Inside part steel or stainless steel. Seals PTFE

Flange: according to DIN or Ansi 150 lbs.
